Color steel tile , corrugated roof double layer roof sheet roll forming machine / double layer roll forming machine



1. Double layer roof sheet roll forming machine description

The double-layer roof sheets are rolled and molded, which are both solemn and elegant, and are beautiful. The appearance is smooth, ripple is uniform, the utilization rate is high, the strength is high, the production automation is high, the cost is low and durable.
Double-layer roof sheet roll forming machine products are widely used in large and medium-sized enterprises of civil construction, such as plant, garage, hangar, stadium exhibition hall, theaters and so on.


2. Main technical details of double layer roof roll forming machine

3. Main features of the double layer roll forming machine

1). This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2). Roll forming process : uncoiler, roll forming, forming step effect, cut to length.
3). Fully Automatic Control System with PLC.
4). Easy operation: Key in the length and quantity on the control panel.
5). 18 months warranty.










4. Main components of double layer roll forming machine

1). Manual Decoiler: 2 sets
Un-powered,Manually control steel coil inner bore shrinkage and stop,
Coil inner diameter is 500-- 508mm
Capacity: Max. 5 Ton

2). Main machine:
With feeding material guide, body frame made from H350 type steel by welding;
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment, hard Chrome Coated;
Shafts Diameter=ф75mm,precision machined
Gear/Sprocket driving, about 18/16 step to form
Main Motor=5.5KW , Frequency speed control
Forming speed approx.13-15m/min

3). Hydraulic Cutting device:
Cutter frame made from high quality 20mm steel plate by welding
Post cut, stop to cutting,Two pieces cutting blades,no blanking
Hydraulic motor: 2.2KW Cutting pressure: 0-8Mpa
Cutting tool material: Cr12, Heat treatment

4). PLC Control System:
Touch screen brand:Taiwan WEINVIE ,PLC and Converter brand: Taiwan DELTA,Encoder brand:Japan Koyo
Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V

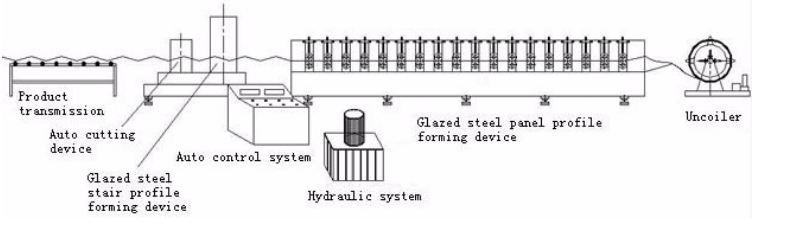

5. Double layer roll forming machine flow chart




6. Delivery




7. After-sell service

A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services
Life time services to every customer.
